book style box assemble machine
MF-9545
MF-9545,Book style assembly machine is simple and convenient to use, high efficiency, saving glue, high precision on positioning, it's the first choice for book style box manufacturers to reduce production costs. The machine adopts the robot arm to automatically position and spray glue, which can be adjusted according to the size of the box. And the machine also can do the surround frame box.
Quantity
Machine introduction:
Book style assembly machine is simple and convenient to use, high efficiency, saving glue, high precision on positioning, is the first choice for book style box manufacturers to reduce production costs. The machine adopts the robot arm to automatically position and spray glue, which can be adjusted according to the size of the box. And the machine also can do the surround frame box.
1. Strip spraying, saving glue, strong adhesion, no leakage;
2. Robot arm positioning, high precision;
3. Machine with pressure function, the case make and the inner box are closely jointed without bubbles.
4 Machine can linked with the case maker machine and the rigid box maker machine.
5. Easy to use, high efficiency.

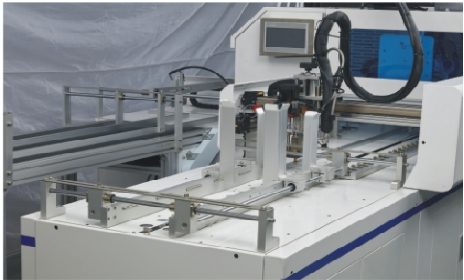

Machine detail parts:

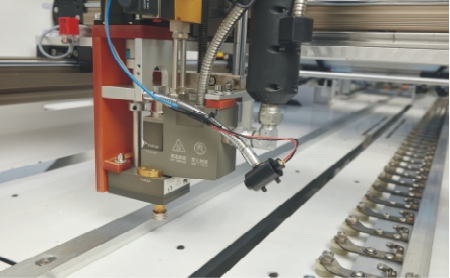

Glue Sprayer

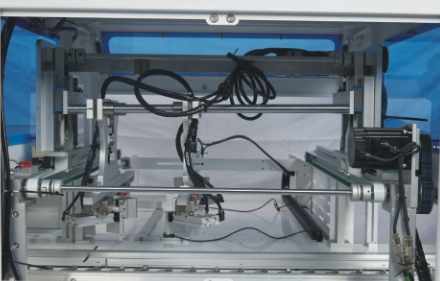

Positioning

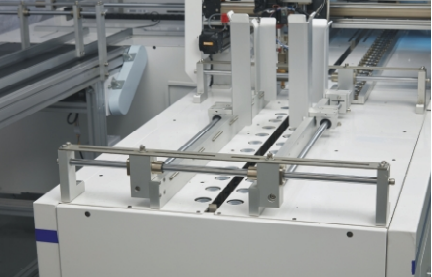

Inner box channel
Case maker channel
Machine parameters:
| Model | MF-9545 |
| Power supply | 220V/50HZ |
| The whole machine power | 8KW |
| Speed | 20-25PCS/MIN |
| Weight | 900KG |
| Maximum case maker size of book box (L*W) | 900*430mm |
| Minimum case maker size of book box (L*W) | 120*120mm |
| Maximum size of book inner box (L*W*H) | 430*430*70mm |
| Minimum size of book inner box( L*W*H) | 80*60*25mm |
| Maximun rigid bottom size(L*W*H) | 450*450*105mm |
| Minimun rigid bottom size(L*W*H) | 110*110*25mm |
| Minimun rigid inner box height | 25mm |
| Maximum glue size | 430*430mm |
| Machine size (L*W*H) | 3200*2050*1950mm |

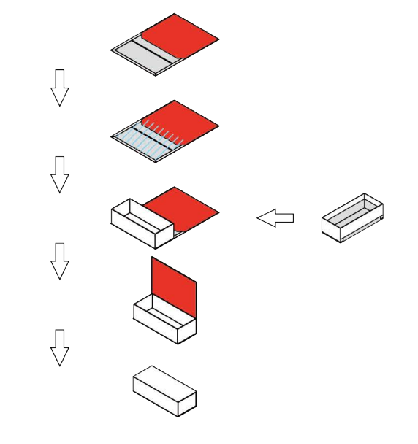

Technological Process:
Book style box: Surround frame box
Payment & shipping terms:
| Minimum Order Quantity | 1pcs |
| Price | Negotiation |
| Package details | Film and plywood crate |
| Delivery time | 20 days |
| Payment terms | T/T, L/C |
| Warranty | 1 year |
| Supply ability | 30 sets/month |
Service after sales:
1. Before delivery, buyers can arrange personnel to train in our company.
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
FAQ:
1. What about machine warranty?
---- 1 year warranty including free machine parts replacement ( consumables are not included).
---- 1 year warranty including free machine parts replacement ( consumables are not included).
2. When the machine breaks down, how do you help us solve the problem
----① We have local service team.
----② 24 hours service online,we will provide the online support.
3. What machines are used to make rigid boxes?
---- Necessary equipments:Grooving machine, Die Cutter machine, Printing Machine, Paper feeding and gluing machine, Box corner pasting machine, Box positioning machine, Box wrapping machine, Case maker machine.
