Fully automatic high-speed intelligent box making machine
MF-3626
MF-3626 fully automatic high speed rigid box making machine is for small size rigid box making, like the jewelry box, cosmetic box, phone box, gift box, and so on. The bigest box size is 360*260*110mm, and the speed up to 60pcs/min. It use the visual positioning with YAMAHA robbot arm thats makes high accuracy positioning. It is single feeder and with double wrapping parts, double hydraulic bubble pressure parts, so the speed is very fast. The total machine controled by servo with a high quality.
Quantity
Machine information:
MF-3626 fully automatic high speed rigid box making machine is for small size rigid box making, like the jewelry box, cosmetic box, phone box, gift box, and so on. The bigest box size is 360*260*110mm, and the speed up to 60pcs/min. It use the visual positioning with YAMAHA robbot arm thats makes high accuracy positioning. It is single feeder and with double wrapping parts, double hydraulic bubble pressure parts, so the speed is very fast. The total machine controled by servo with a high quality.
1.The machine adopts high-precision visual positioning parts with the accuracy of+0.05mm.
2.The whole machine uses inteligent PLc control and in simple operation.
3.This machine is suitable for the production of mobil phone boxes,cosmetics boxes,jewely boxes,moon cake boxes ,tea boxes and so on.
4.The production speed up to 60 pcs/min;
5.The machine can produce two same boxes at same time.
6. With double wrapping machine and double hydraulic bubble pressure machine

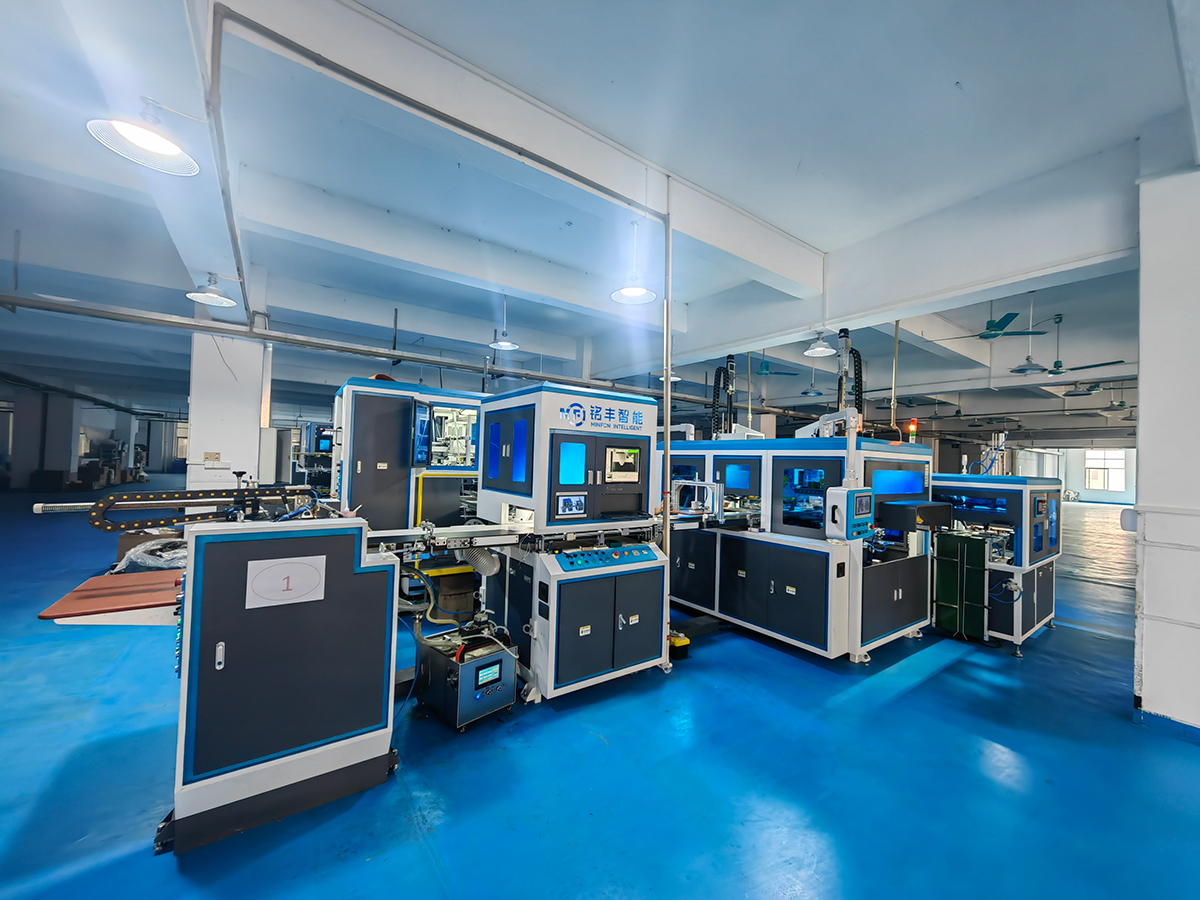

Machine photograph:

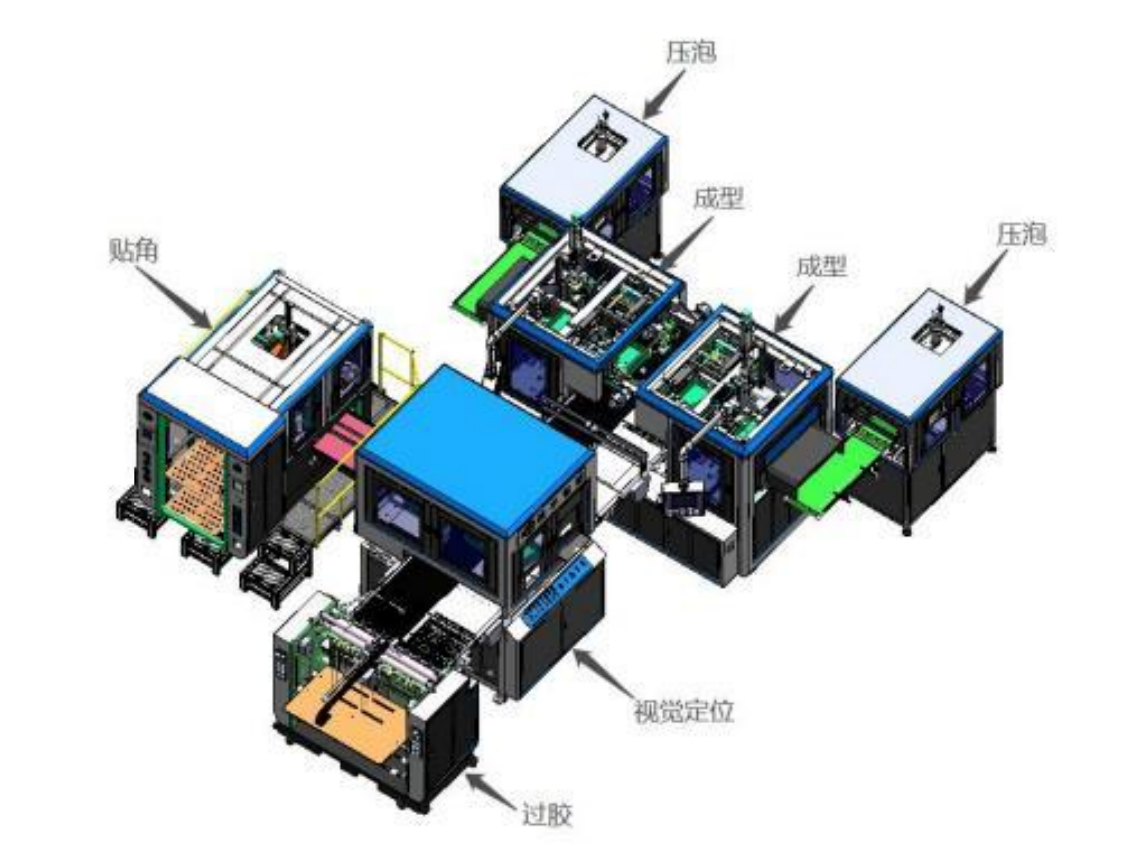

Machine detail parts:
Paper feeding
Corner pasting part, with non-stop feeding the grey board.
Four side of the corner controled by 4 servos, the length of the tape can be adjust, support do the special shape box.
Visual positioning with YAMAHA robbot arm
The wrapping part, controled by servo
Machine Parameters：
| Model | MF-3626 |
| Paper size | Max length size: 610MM |
| Min length size: 160MM | |
| Max width size: 360MM | |
| Min width size: 70MM | |
| Paper thickness: 80-300gsm | |
| Gray Board Size | Max length size: 550MM |
| Min length size: 80MM | |
| Max width size: 430MM | |
| Min width size: 70MM | |
| Box size | Max length size: 360MM |
| Min length size: 60MM | |
| Max width size: 260MM | |
| Min width size: 50MM | |
| Max height size: 110MM | |
| Min height size: 15MM | |
| Paper Folding Size | 10-120MM |
| Paper Folding Depth | 15-75MM |
| Air Pressure | 460L/min, 0.8MPA |
| Voltage | AC380V |
| Total Power | 40KW |
| Total power Consumption | 18KW/H |
| Production Speed | ≦60pcs/min |
| Equipment Net Weight | 8024KG |
| Machine size | 8735*5795*3300MM |
Payment & shipping terms:
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Package detail | Film and plywood crate |
| Delivery time | 20 days |
| Payment terms | T/T L/C |
| Warranty | 1 year |
| Supply ability | 30 sets/month |
Technological:
Model A: Standard size range of paper and cardboard boxes.
Model B: The size range of the paper and cardboard with folding ear
Model C: The size range of the paper and cardboard with fully folding ear
Model D: The size range of the special shape rigid box

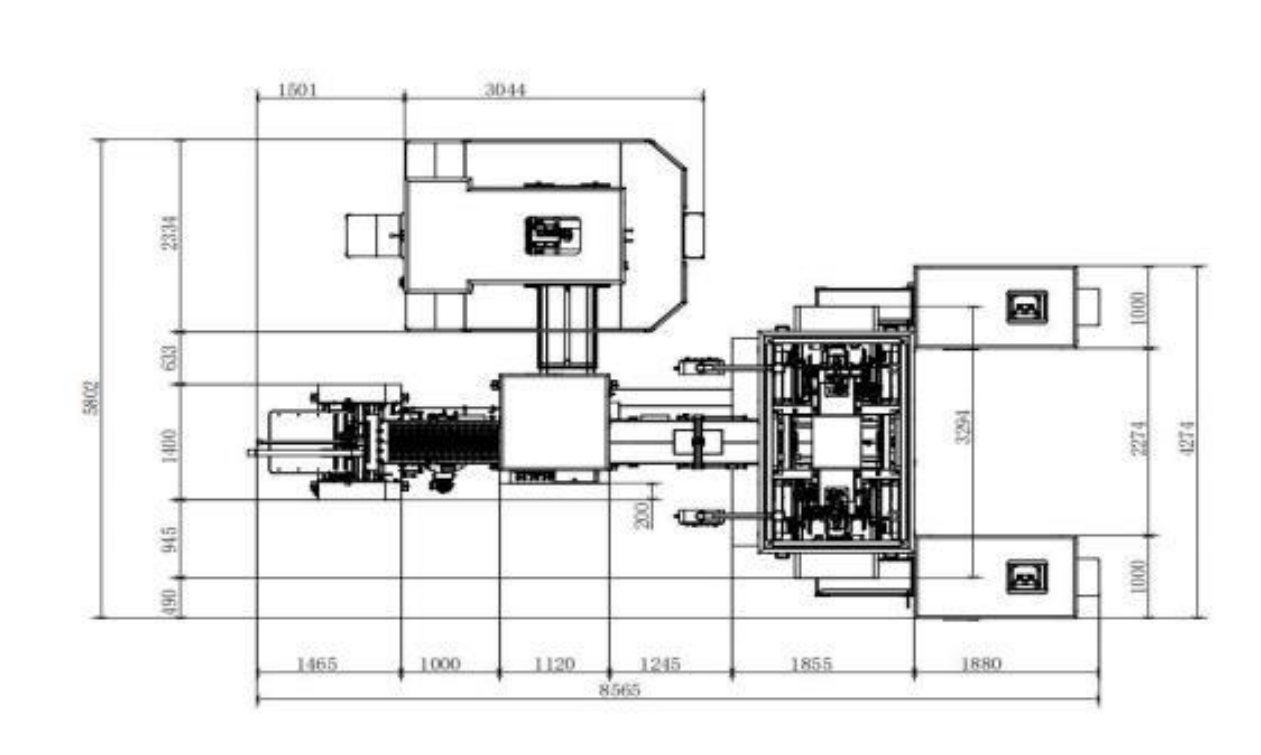

Machine layout:
Service after sales:
1. Before delivery, buyers can arrange personnel to train in our company.
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
FAQ:
1. What about machine warranty?
---- 1 year warranty including free machine parts replacement ( consumables are not included).
---- 1 year warranty including free machine parts replacement ( consumables are not included).
2. When the machine breaks down, how do you help us solve the problem
----① We have local service team.
----② 24 hours service online,we will provide the online support.
3. What machines are used to make rigid boxes?
---- Necessary equipments:Grooving machine, Die Cutter machine, Printing Machine, Paper feeding and gluing machine, Box corner pasting machine, Box positioning machine, Box wrapping machine, Case maker machine.
