Fully Automatic Double Channel Intelligent Box Making Machine
MF-4530
MF-4530 intelligent 2 in 1 rigid box making machine,with double convey belts, double forming,double hydraulic bubble pressure, support do the top and bottom box at same time and with high speed about 48pcs/min. Visual positioning with YAMAHA robbot arm, high precision +0.05mm. Use widely on the phone box making, jewelry box making, cosmetics box making, gift box making and so on.
数量
Machine information:
MF-4530 intelligent 2 in 1 rigid box making machine,with double convey belts, double forming,double hydraulic bubble pressure, support do the top and bottom box at same time and with high speed about 48pcs/min. Visual positioning with YAMAHA robbot arm, high precision +0.05mm. Use widely on the phone box making, jewelry box making, cosmetics box making, gift box making and so on.
1.The machine adopts high-precision visual positioning parts with the accuracy of+0.05mm.
2.The whole machine uses inteligent PLC control and in simple operation.

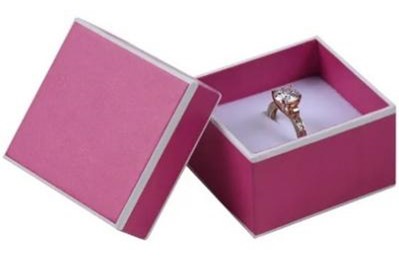

3.This machine is suitable for the production of mobil phone boxes making,cosmetics boxes making, jewely boxes making, moon cake boxes making ,tea boxes making and so on.
4.The production speed up to 48 pcs/min;
5.The machine can produce top and bottom box at same time. Also support use single channel .
6.Double channel, When one of the side fails or need change mould,the other side can produce normally.
7. With hydraulic bubble pressure machine.

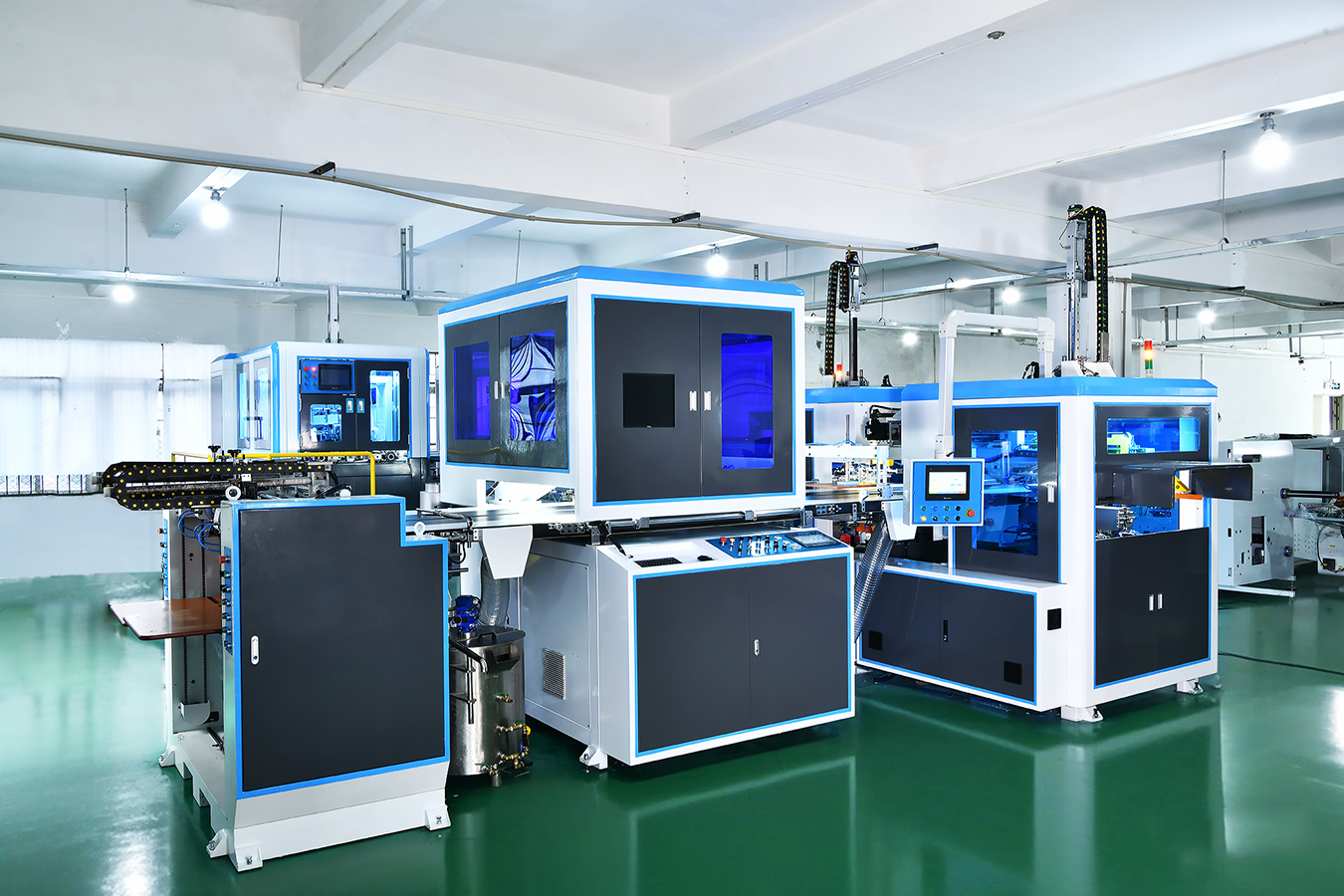

Machine photograph:
Machine detail parts:
Paper feeding
Corner pasting part, with non-stop feeding the grey board.
Four side of the corner controled by 4 servos, the length of the tape can be adjust, support do the special shape box.

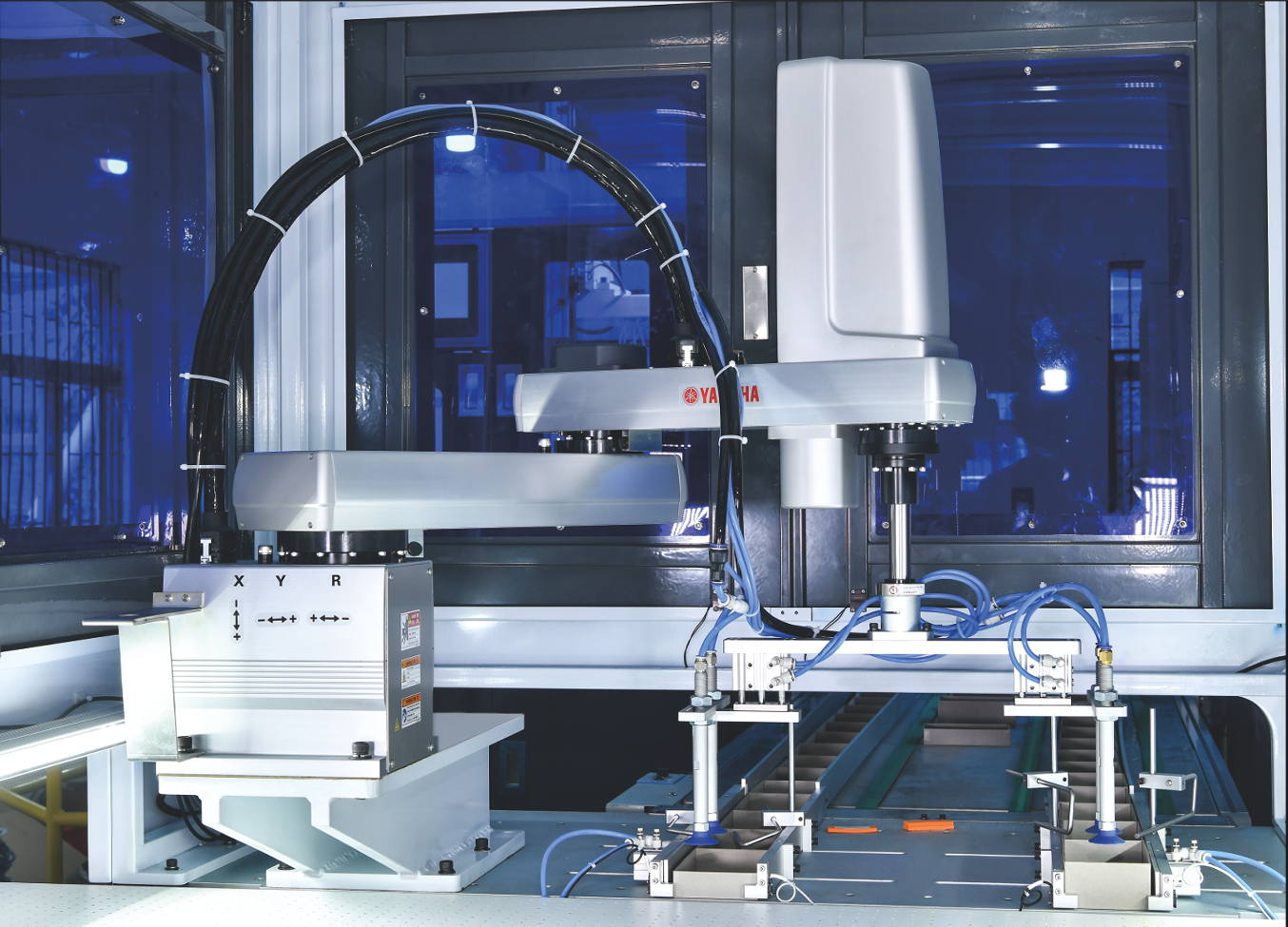

Visual positioning with YAMAHA robbot arm
The wrapping part, controled by servo
Machine Parameters：
| Model | MF-4530 |
| Paper size | Max length size: 750MM |
| Min length size: 200MM | |
| Max width size: 550MM | |
| Min width size: 100MM | |
| Paper thickness: 80-300gsm | |
| Gray Board Size | Max length size: 710MM |
| Min length size: 80MM | |
| Max width size: 560MM | |
| Min width size: 70MM | |
| Box size | Max length size: 450MM |
| Min length size: 60MM | |
| Max width size: 300MM | |
| Min width size: 50MM | |
| Max height size: 130MM | |
| Min height size: 15MM | |
| Paper Folding Size | 10-120MM |
| Paper Folding Depth | 15-75MM |
| Air Pressure | 460L/min, 0.8MPA |
| Voltage | AC380V |
| Total Power | 52KW |
| Total power Consumption | 18KW/H |
| Production Speed | ≦48pcs/min |
| Equipment Net Weight | 11700KG |
| Machine size | 8865*8322*3500MM |
Payment & shipping terms:
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Package detail | Film and plywood crate |
| Delivery time | 20 days |
| Payment terms | T/T L/C |
| Warranty | 1 year |
| Supply ability | 30 sets/month |
Technological:
Model A: Standard size range of paper and cardboard boxes.
Model B: The size range of the paper and cardboard with folding ear
Model C: The size range of the paper and cardboard with fully folding ear
Model D: The size range of the special shape rigid box

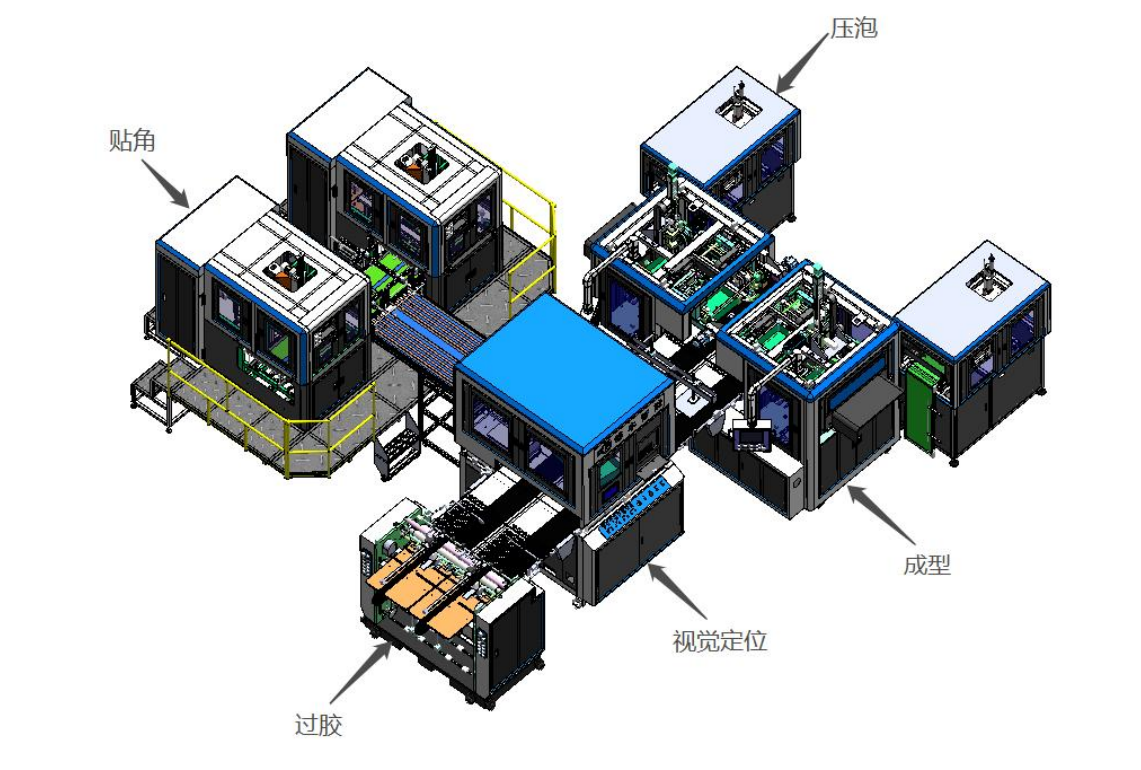

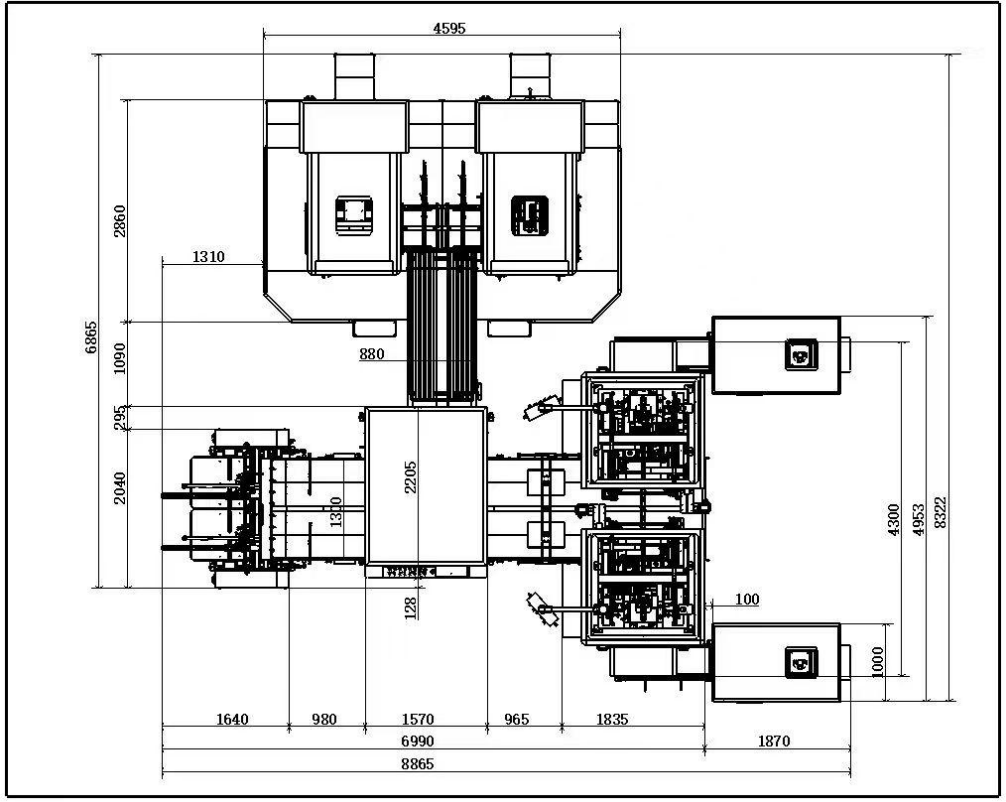

Machine layout:
Service after sales:
1. Before delivery, buyers can arrange personnel to train in our company.
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
2. Our engineer will go to the buyer's factory for install and train work, but the buyer should bear all the local charges, like the food and accommodation.
3. 15 days of training service are free of charge.
4. 24 hours service online!
FAQ:
1. What about machine warranty?
---- 1 year warranty including free machine parts replacement ( consumables are not included).
---- 1 year warranty including free machine parts replacement ( consumables are not included).
2. When the machine breaks down, how do you help us solve the problem
----① We have local service team.
----② 24 hours service online,we will provide the online support.
3. What machines are used to make rigid boxes?
---- Necessary equipments:Grooving machine, Die Cutter machine, Printing Machine, Paper feeding and gluing machine, Box corner pasting machine, Box positioning machine, Box wrapping machine, Case maker machine.
